CT Series Wet Magnetic Separator

The CT Series Wet Magnetic Separator is designed for wet magnetic separation where slurry-based material handling is required. It is commonly used in mineral processing plants for recovering magnetite, as well as for dewatering and de-ironing non-metallic ores prior to further classification or grinding.

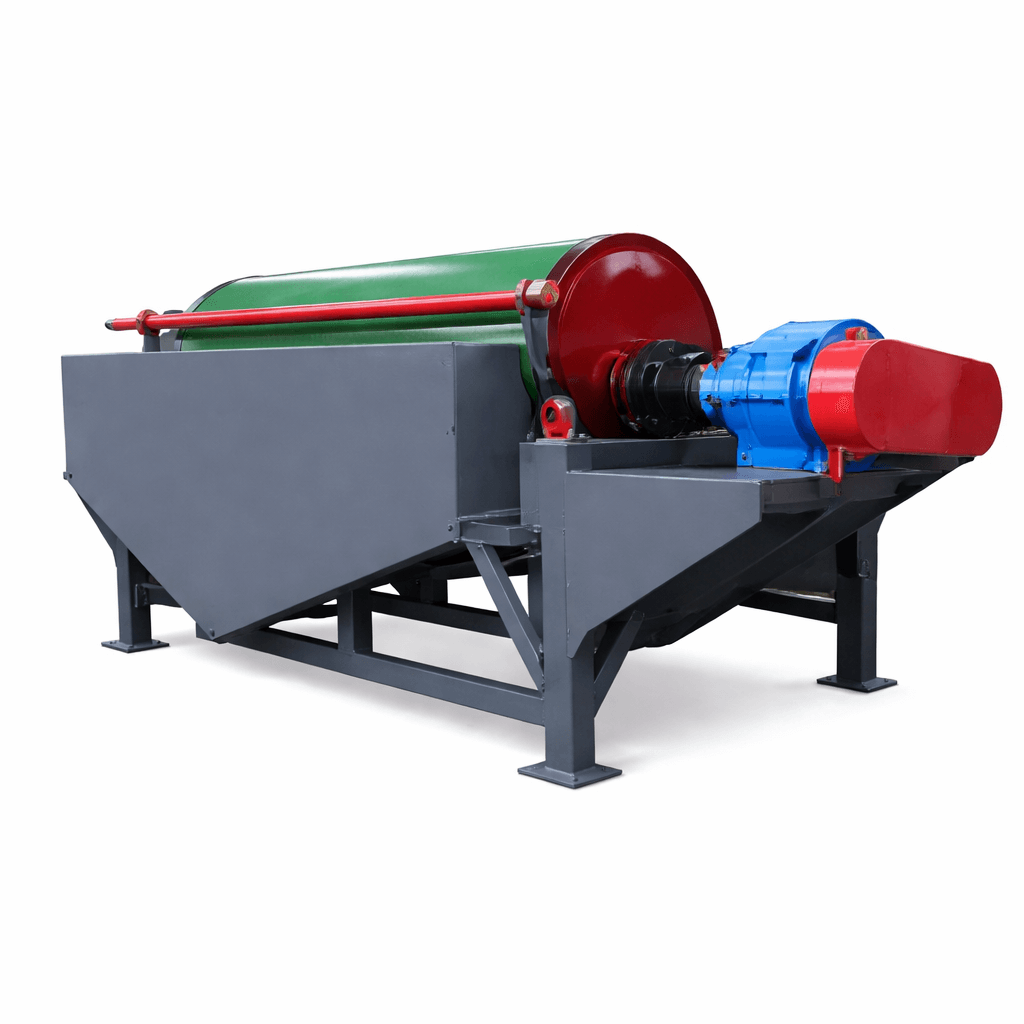

The system consists of a rotating separator drum, an internal magnetic system, a separator tank, a transmission assembly, and overflow devices for material feeding and discharge. Depending on the material flow direction and separation objective, the separator can be configured in current style (S), counter-current style (N), or semi-countercurrent style (B).

As slurry passes through the magnetic field generated by the drum, strongly magnetic particles are attracted to the drum surface while non-magnetic material flows away with the slurry. Adjustable magnetic angle control allows operators to fine-tune separation performance based on ore characteristics and recovery requirements.

This flexibility supports efficient recovery across a range of operating conditions while maintaining stable performance and low wear. Units can be installed individually, in series, or in parallel to match plant capacity and layout constraints.

The CT Series is best suited for rough or fine separation of strong magnetic minerals smaller than 0.2 mm, particularly in magnetite beneficiation circuits and non-metallic material purification applications.

The technical data below provides model-specific information including drum size, operating speed in revolutions per minute (RPM), throughput capacity in tons per hour (TPH), motor power, and overall equipment dimensions to support proper equipment selection.

If you are assessing wet magnetic separation for a new installation or an upgrade, we are available to review material behavior, flow configuration, and customization options.

This table outlines CT Series Wet Magnetic Separator models with corresponding drum dimensions, operating speed, capacity range, installed power, and overall equipment size.

Model	Roller Size D × L (mm)	Speed (RPM)	Capacity (TPH)	Overall Dimension L × W × d (mm)	Power (kW)	Weight (t)
CT(S/N/B)-712	750 × 1200	35	10–15	2330 × 1770 × 1280	3	1.85
CT(S/N/B)-718	750 × 1800	35	20–35	2930 × 1770 × 1280	3	2.43
CT(S/N/B)-918	900 × 1800	28	25–40	3095 × 1769 × 1465	4	2.75
CT(S/N/B)-924	900 × 2400	28	40–55	3695 × 1769 × 1465	4	3.65
CT(S/N/B)-1018	1050 × 1800	22	45–60	3115 × 1999 × 1565	5.5	3.6
CT(S/N/B)-1021	1050 × 2100	22	52–70	3415 × 1999 × 1565	5.5	4.2
CT(S/N/B)-1024	1050 × 2400	22	60–80	3715 × 1999 × 1565	5.5	4.8
CT(S/N/B)-1030	1050 × 3000	22	80–120	4315 × 1999 × 1565	7.5	6.26
CT(S/N/B)-1218	1200 × 1800	19	60–75	3150 × 2300 × 1920	7.5	5.85
CT(S/N/B)-1224	1200 × 2400	19	80–110	3750 × 2300 × 1920	7.5	6.97
CT(S/N/B)-1230	1200 × 3000	19	100–140	4350 × 2300 × 1920	7.5	8.5
CT(S/N/B)-1545	1500 × 4500	14	160–220	6050 × 2700 × 2300	15	15

The magnetic strength should be selected based on ore characteristics. CT Series Wet Magnetic Separators can be customized to meet specific application requirements.
